General Fittings Specifications

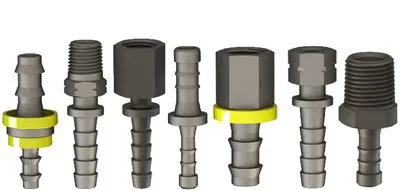

General Fittings

Specifications

  • AS9100:2016 / ISO 9001:2015 Certified
  • Dimensions to ANSI 16.3 Pressure to ANSI 16.5 Class 150LB
  • Fittings are ROHS Compliant
  • Fittings for use with Air, Water, Oil and Steam
  • Standard Steel Material Specification –C1215 and C12L14 ‐ASTM, A108, ASTM, A29
  • Standard Stainless Steel Material Specification –Type 303 ‐ASTM, A582
  • Standard Stainless Steel Material Specification –Type 304 ‐ASTM, A276
  • Standard Stainless Steel Material Specification –Type 316 ‐ASTM, A276
  • Standard Aluminum Material Specifications –Type 2024‐T351 –ASTM‐B211
  • Steel Parts –Bright Trivalent Plated Per ASTM B633 Service Condition 1, Type III –(Clear)
  • Stainless Steel Parts – (Clean and Dry, No Passivation or Electropolish)
  • Aluminum Fittings –Clear Conventional Type II Sulfuric Anodize
  • Twist Jaw Hose Coupling for use with Air and Water. (Do not use in Steam applications)
  • Hose Type: Rubber and Plastic – (See hose manufacturer specifications for compatibility)
  • Clamps: Use band, worm‐drive, or malleable bolt clamp Maximum Pressure: Band Type Fittings ‐150PSI @72°F
  • Maximum Pressure: Push On Fittings –300PSI @ 72°F
  • Twist Jaw Couplings –110PSI @72°F ‐Maximum Temperature: 110°F
  • Hose to Pipe Temperature Range: ‐40°F to +350°F (See hose mfg. specifications)
  • Hose to Hose Temperature Range: ‐40°F to +350°F (See hose mfg. specifications)
  • Hose to Pipe Vacuum Range: 29” Hg @ 72°F (See hose mfg. specifications)
  • Hose to Hose Vacuum Range: 29°Hg @ 72°F (See hose mfg. specifications
