Band Clamp Fittings

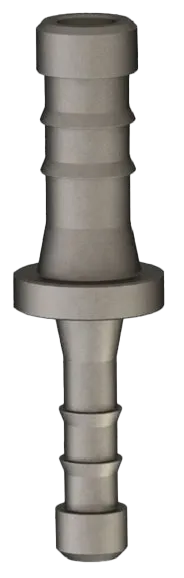

Band Clamp Hose
Barb to Hose Barb
Zinc Plated Carbon Steel
| Part Number | Hose Barb | Hose ID size |
|---|---|---|
| B010-04-02 | 1/4″ | 1/8″ |
| B010-04-04 | 1/4″ | 1/4″ |
| B010-06-04 | 3/8″ | 1/4″ |
| B010-06-06 | 3/8″ | 3/8″ |
| B010-08-06 | 1/2″ | 3/8″ |
| B010-08-08 | 1/2″ | 1/2″ |
| B010-10-10 | 5/8″ | 5/8″ |
| B010-12-08 | 3/4″ | 1/2″ |
| B010-12-12 | 3/4″ | 3/4″ |
| B010-12-16 | 3/4″ | 1″ |
| B010-16-16 | 1″ | 1″ |
| B010-16-20 | 1″ | 1 1/4″ |
| B010-20-20 | 1 1/4″ | 1 1/4″ |
303-304 Stainless Steel
| Part Number | Hose Barb | Hose ID size |
|---|---|---|
| B014-04-02 | 1/4″ | 1/8″ |
| B014-04-04 | 1/4″ | 1/4″ |
| B014-06-04 | 3/8″ | 1/4″ |
| B014-06-06 | 3/8″ | 3/8″ |
| B014-08-06 | 1/2″ | 3/8″ |
| B014-08-08 | 1/2″ | 1/2″ |
| B014-10-10 | 5/8″ | 5/8″ |
| B014-12-08 | 3/4″ | 1/2″ |
| B014-12-12 | 3/4″ | 3/4″ |
| B014-12-16 | 3/4″ | 1″ |
| B014-16-16 | 1″ | 1″ |
| B014-16-20 | 1″ | 1 1/4″ |
| B014-20-20 | 1 1/4″ | 1 1/4″ |
Aluminum
| Part Number | Hose Barb | Hose ID size |
|---|---|---|
| B011-04-04 | 1/4″ | 1/4″ |
| B011-06-06 | 3/8″ | 3/8″ |
| B011-08-08 | 1/2″ | 1/2″ |
| B011-10-10 | 5/8″ | 5/8″ |
| B011-12-12 | 3/4″ | 3/4″ |
| B011-16-16 | 1″ | 1″ |
| B011-20-20 | 1 1/4″ | 1 1/4″ |

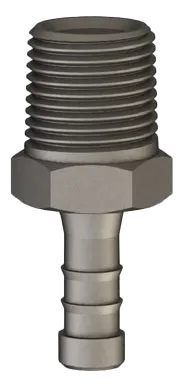

Band Clamp Hose
Barb to Male NPT/NPTF
Zinc Plated Carbon Steel
| Part Number | Hose Barb | Thread Size |
|---|---|---|
| B020-02-02 | 1/8″ | 1/8″ |
| B020-02-04 | 1/8″ | 1/4″ |
| B020-02-06 | 1/8″ | 3/8″ |
| B020-02-08 | 1/8″ | 1/2″ |
| B020-03-02 | 3/16″ | 1/8″ |
| B020-03-04 | 3/16″ | 1/4″ |
| B020-03-06 | 3/16″ | 3/8″ |
| B020-04-02 | 1/4″ | 1/8″ |
| B020-04-04 | 1/4″ | 1/4″ |
| B020-04-06 | 1/4″ | 3/8″ |
| B020-04-08 | 1/4″ | 1/2″ |
| B020-05-04 | 5/16″ | 1/4″ |
| B020-06-02 | 3/8″ | 1/8″ |
| B020-06-04 | 3/8″ | 1/4″ |
| B020-06-06 | 3/8″ | 3/8″ |
| B020-06-08 | 3/8″ | 1/2″ |
| B020-08-04 | 1/2″ | 1/4″ |
| B020-08-06 | 1/2″ | 3/8″ |
| B020-08-08 | 1/2″ | 1/2″ |
| B020-08-12 | 1/2″ | 3/4″ |
| B020-10-04 | 5/8″ | 1/4″ |
| B020-10-06 | 5/8″ | 3/8″ |
| B020-10-08 | 5/8″ | 1/2″ |
| B020-10-12 | 5/8″ | 3/4″ |
| B020-12-08 | 3/4″ | 1/2″ |
| B020-12-12 | 3/4″ | 3/4″ |
| B020-12-16 | 3/4″ | 1″ |
| B020-16-12 | 1″ | 3/4″ |
| B020-16-16 | 1″ | 1″ |
| B020-16-20 | 1″ | 1 1/4″ |
| B020-20-12 | 1 1/4″ | 3/4″ |
| B020-20-16 | 1 1/4″ | 1″ |
| B020-20-20 | 1 1/4″ | 1 1/4″ |
| B020-24-16 | 1 1/2″ | 1″ |
| B020-24-20 | 1 1/2″ | 1 1/4″ |
| B020-24-24 | 1 1/2″ | 1 1/2″ |
| B020-6M-02 | 6MM | 1/8″ |
| B020-6M-04 | 6MM | 1/4″ |
| B020-8M-02 | 8MM | 1/8″ |
| B020-8M-04 | 8MM | 1/4″ |
| B020-8M-06 | 8MM | 3/8″ |
| B020-10M-04 | 10MM | 1/4″ |
| B020-10M-06 | 10MM | 3/8″ |
303-304 Stainless Steel
| Part Number | Hose Barb | Thread Size |
|---|---|---|
| B024-02-02 | 1/8″ | 1/8″ |
| B024-02-04 | 1/8″ | 1/4″ |
| B024-03-02 | 3/16″ | 1/8″ |
| B024-03-04 | 3/16″ | 1/4″ |
| B024-04-02 | 1/4″ | 1/8″ |
| B024-04-04 | 1/4″ | 1/4″ |
| B024-04-06 | 1/4″ | 3/8″ |
| B024-04-08 | 1/4″ | 1/2″ |
| B024-05-04 | 5/16″ | 1/4″ |
| B024-06-02 | 3/8″ | 1/8″ |
| B024-06-04 | 3/8″ | 1/4″ |
| B024-06-06 | 3/8″ | 3/8″ |
| B024-06-08 | 3/8″ | 1/2″ |
| B024-08-04 | 1/2″ | 1/4″ |
| B024-08-06 | 1/2″ | 3/8″ |
| B024-08-08 | 1/2″ | 1/2″ |
| B024-08-12 | 1/2″ | 3/4″ |
| B024-10-08 | 5/8″ | 1/2″ |
| B024-10-12 | 5/8″ | 3/4″ |
| B024-12-08 | 3/4″ | 1/2″ |
| B024-12-12 | 3/4″ | 3/4″ |
| B024-12-16 | 3/4″ | 1″ |
| B024-16-12 | 1″ | 3/4″ |
| B024-16-16 | 1″ | 1″ |
| B024-20-20 | 1 1/4″ | 1 1/4″ |
| B024-24-24 | 1 1/2″ | 1 1/2″ |
316 Stainless Steel
| Part Number | Hose Barb | Thread Size |
|---|---|---|
| B026-02-02 | 1/8″ | 1/8″ |
| B026-02-04 | 1/8″ | 1/4″ |
| B026-03-02 | 3/16″ | 1/8″ |
| B026-03-04 | 3/16″ | 1/4″ |
| B026-04-02 | 1/4″ | 1/8″ |
| B026-04-04 | 1/4″ | 1/4″ |
| B026-04-06 | 1/4″ | 3/8″ |
| B026-04-08 | 1/4″ | 1/2″ |
| B026-05-04 | 5/16″ | 1/4″ |
| B026-06-02 | 3/8″ | 1/8″ |
| B026-06-04 | 3/8″ | 1/4″ |
| B026-06-06 | 3/8″ | 3/8″ |
| B026-06-08 | 3/8″ | 1/2″ |
| B026-06-12 | 3/8″ | 3/4″ |
| B026-08-04 | 1/2″ | 1/4″ |
| B026-08-06 | 1/2″ | 3/8″ |
| B026-08-08 | 1/2″ | 1/2″ |
| B026-08-12 | 1/2″ | 3/4″ |
| B026-10-08 | 5/8″ | 1/2″ |
| B026-10-12 | 5/8″ | 3/4″ |
| B026-12-08 | 3/4″ | 1/2″ |
| B026-12-12 | 3/4″ | 3/4″ |
| B026-12-16 | 3/4″ | 1″ |
| B026-16-08 | 1″ | 1/2″ |
| B026-16-12 | 1″ | 3/4″ |
| B026-16-16 | 1″ | 1″ |
| B026-16-20 | 1″ | 1 1/4″ |
| B026-16-24 | 1″ | 1 1/2″ |
| B026-20-16 | 1 1/4″ | 1″ |
| B026-24-16 | 1 1/2″ | 1″ |
| B026-24-24 | 1 1/2″ | 1 1/2″ |
Aluminum
| Part Number | Hose Barb | Thread Size |
|---|---|---|
| B021-04-02 | 1/4″ | 1/8″ |
| B021-04-04 | 1/4″ | 1/4″ |
| B021-04-06 | 1/4″ | 3/8″ |
| B021-05-04 | 5/16″ | 1/4″ |
| B021-06-02 | 3/8″ | 1/8″ |
| B021-06-04 | 3/8″ | 1/4″ |
| B021-06-06 | 3/8″ | 3/8″ |
| B021-06-08 | 3/8″ | 1/2″ |
| B021-08-04 | 1/2″ | 1/4″ |
| B021-08-06 | 1/2″ | 3/8″ |
| B021-08-08 | 1/2″ | 1/2″ |
| B021-08-12 | 1/2″ | 3/4″ |
| B021-12-08 | 3/4″ | 1/2″ |
| B021-12-12 | 3/4″ | 3/4″ |
| B021-12-16 | 3/4″ | 1″ |
| B021-16-12 | 1″ | 3/4″ |
| B021-16-16 | 1″ | 1″ |
